Overview

EA GraphLink allows you to access data from your Sparx Enterprise Architect (EA) models such as elements, connectors, packages, diagrams, and their properties.

Instead of opening EA, you can simply send a request from a tool like Postman and retrieve the data you need.

Using tools such as Postman, users can send API requests to EA GraphLink and retrieve model data in a structured format for analysis, integration, and reporting purposes.

To begin using the API, the following are required:

• Endpoint URL
  The address to which API requests are sent

• API Token
  A secure access key used to authenticate API requests

Both the Endpoint URL and API Token can be obtained from the EA GraphLink application. The next section describes how to retrieve these details.

Prerequisites

Ensure that the following prerequisites are met before proceeding:

• The EA GraphLink server is installed, running, and accessible through a web browser

• A valid user account is available

• If not, contact your EA GraphLink administrator to create one

• At least one schema and one EA model are configured and active

• The EA GraphLink server URL is known
  Example: http://your-server:8090

Retrieving the Endpoint URL and API Token

Follow the steps below to obtain the Endpoint URL and API Token required for accessing the EA GraphLink API:

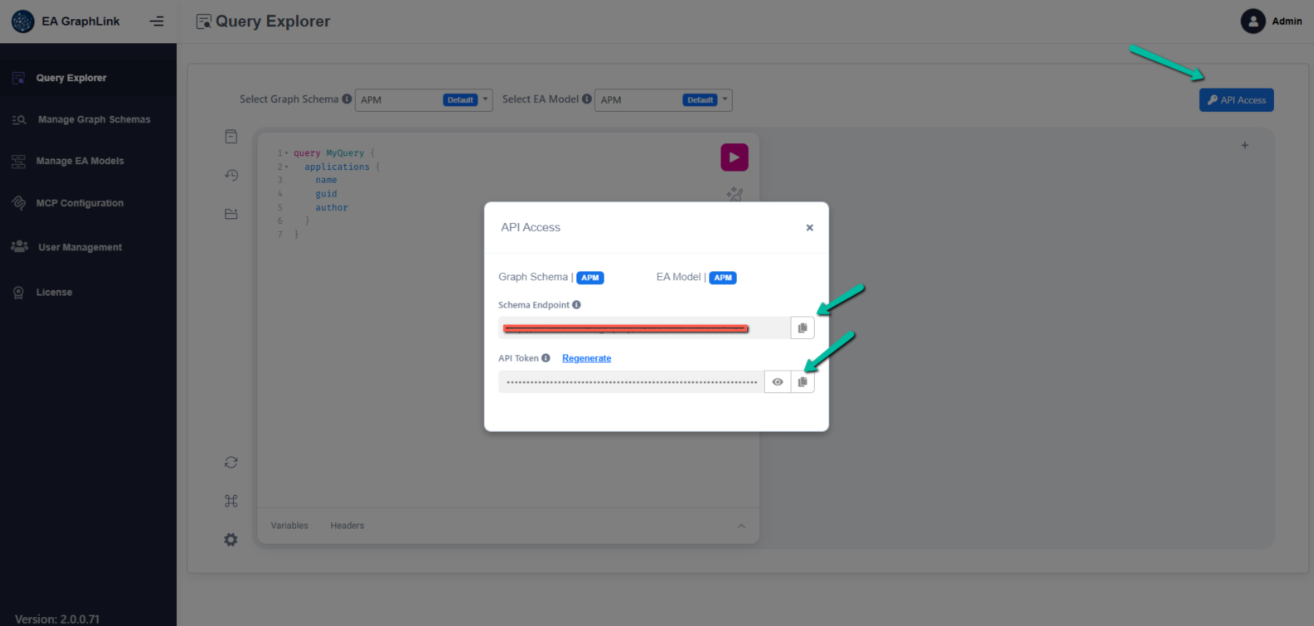

1. Open the EA GraphLink application in a web browser and log in using your credentials

2. From the left navigation panel, select Query Explorer

3. At the top of the page:

• Select the required Graph Schema from the first dropdown

• Select the corresponding EA Model from the second dropdown

4. Click the API Access button (key icon) located in the top-right section of the page

5. A dialog will be displayed containing the following details:

• Schema Endpoint
  This is the Endpoint URL. Use the copy option to copy the complete URL

• API Token
  This is your secure access key. Click the visibility icon to reveal the token, then copy it

6. Store both the Endpoint URL and API Token securely, as they will be required in subsequent steps

Important Note

If the Regenerate option is used, a new API Token will be generated and the previous token will be invalidated immediately.

Any existing integrations or tools using the previous token must be updated with the newly generated token.

Understanding Query Execution

API querying in EA GraphLink follows a request and response model.

• A query is defined to specify the data to be retrieved

• The query is sent to the Endpoint URL along with the API Token for authentication

• The server processes the request and returns the corresponding data in a structured response

Example Query

The following example demonstrates a simple query to retrieve top-level packages:

{
  “query”: “{ packages(filters: { parentIds: 0 }) { name packageId } }”
}


This query requests the name and package ID of all top-level packages.

Example Response

A typical response from the API is shown below:

{
  “data”: {
    “packages”: [
      { “name”: “Architecture”, “packageId”: 1 },
      { “name”: “Infrastructure”, “packageId”: 2 },
      { “name”: “Applications”, “packageId”: 3 }
    ]
  }
}


The response is returned in JSON format and contains the data requested in the query.

Executing API Requests Using Postman

Follow the steps below to configure Postman for sending requests to the EA GraphLink API.

Step 1: Create a New Request

1. Open Postman

2. Click New and select HTTP Request (or use the shortcut Ctrl + N)

Step 2: Set the Request Method and Endpoint

1. In the method dropdown (top-left), change the request type from GET to POST

2. In the URL field, enter the Endpoint URL obtained earlier

Example:

https://your-doamin.com/graphql/APMSchema?model=APM

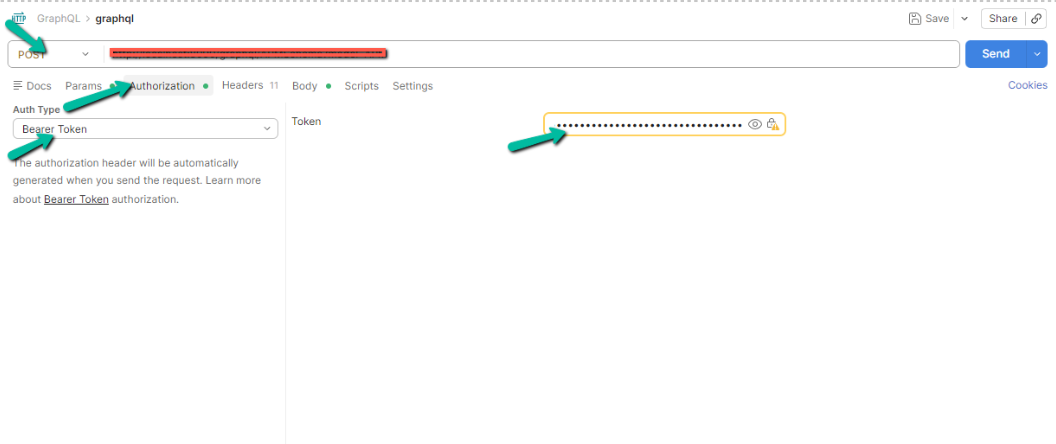

Step 3: Configure Authentication

1. Navigate to the Authorization tab

2. In the Auth Type dropdown, select Bearer Token

3. In the Token field, enter your API Token

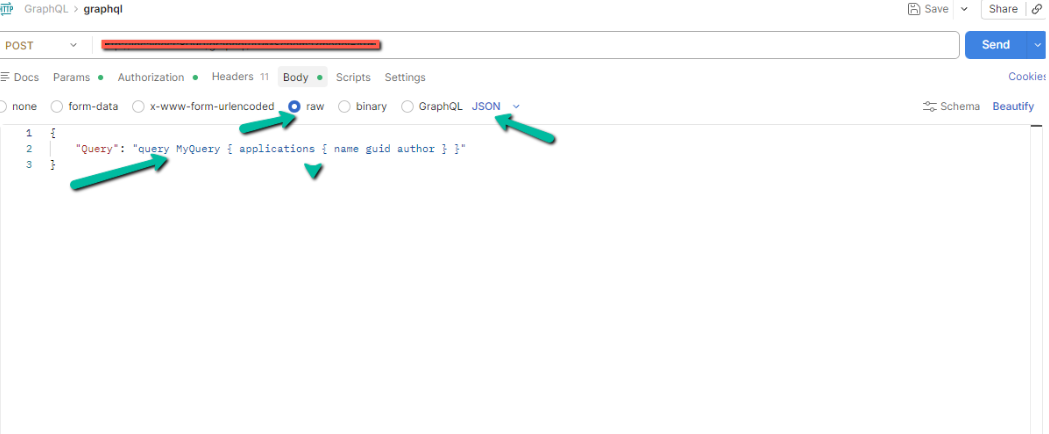

Step 4: Set Up the Body

1. Navigate to the Body tab

2. Select raw

3. From the format dropdown, choose JSON

Postman is now configured and ready to send API requests.

Executing Your First Query

Follow the steps below to send a test query and verify that the API is functioning correctly.

Step 1: Enter the Query

In the Body section of Postman, enter the following query:

{
 “query”: “query MyQuery { applications { name guid author } }”
}

This query retrieves the name, GUID, and author of application elements.

Step 2: Send the Request

Click the Send button located on the right side of the request bar to execute the query.

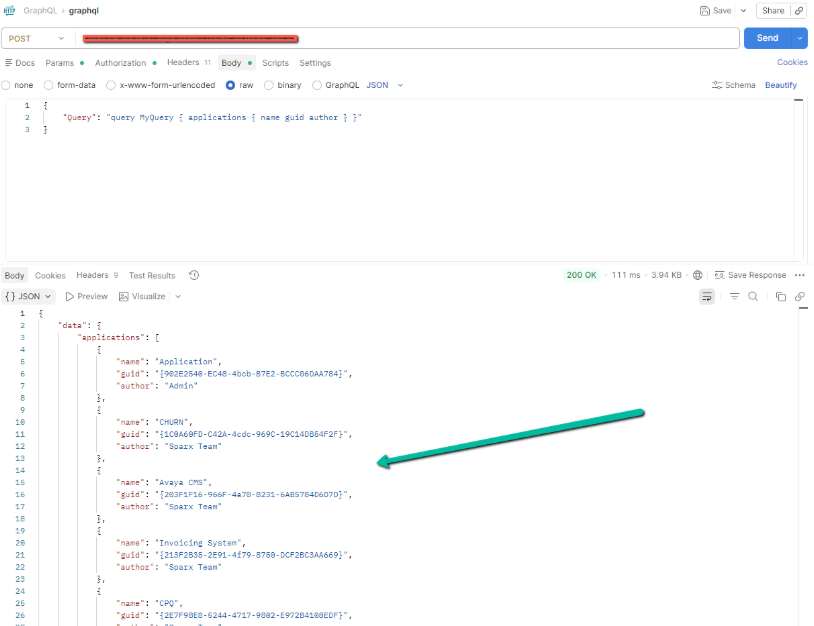

Step 3: Review the Response

The response will be displayed in the lower panel of Postman. A successful response will resemble the following:

{

    “data”: {

        “applications”: [

            {

                “name”: “Application”,

                “guid”: “{902E2540-EC48-4bcb-B7E2-BCCC06DAA784}”,

                “author”: “Admin”

            },

            {

                “name”: “CHURN”,

                “guid”: “{1C0A60FD-C42A-4cdc-969C-19C14DB54F2F}”,

                “author”: “Sparx Team”

            }

        ]

    }

}

Result Validation

If the response contains a data object with results, the API request has been successfully executed and the connection to EA GraphLink is working as expected.

Sample Queries

The following examples demonstrate commonly used queries. Replace the content in the Postman Body section with any of these queries and execute the request.

Retrieve Top-Level Packages

Returns the names and identifiers of all root-level packages in the EA model.

{
  “query”: “{ packages(filters: { parentIds: 0 }) { name packageId } }”
}


Retrieve Child Packages for a Specific Package

Returns packages that are directly contained within a given parent package.
Replace 123 with the required Package ID.

{
  “query”: “{ packages(filters: { parentIds: 123 }) { name packageId } }”
}


Retrieve Elements by Type

Returns elements filtered by stereotype. Replace “Application” with the required stereotype.

{
  “query”: “{ elements(filters: { stereotype: \”Application\” }) { name alias status author } }”
}


Retrieve Elements with Tagged Values

Returns elements along with their associated tagged values (custom properties).

{
  “query”: “{ elements(filters: { stereotype: \”Application\” }) { name taggedValues { property value } } }”
}


Retrieve Connectors Between Elements

Returns relationships between elements, including source and destination details.

{
  “query”: “{ connectors { name connectorType direction sourceElement { name } destElement { name } } }”
}


Retrieve Diagrams

Returns a list of diagrams within the model.

{
  “query”: “{ diagrams { name diagramType author createdDate } }”
}


Note

The fields available in queries depend on the selected schema. To explore available fields:

• Use the Query Explorer within EA GraphLink

• The Explorer panel provides a structured view of available entities and fields

• Queries can be constructed interactively by selecting the required fields

Understanding the API Response

All responses from EA GraphLink follow a consistent JSON structure. The response typically contains either the requested data, error details, or a combination of both.

Successful Response

When a request is processed successfully, the response contains a data object with the requested results.

{
  “data”: {
    “packages”: [
      { “name”: “Architecture”, “packageId”: 1 },
      { “name”: “Infrastructure”, “packageId”: 2 }
    ]
  }
}

• data
  Contains the results returned by the query

• The field within data (for example, packages, elements, or connectors) corresponds to the entity requested in the query

Error Response

If the request fails, the response includes an errors array describing the issue.

{
  “data”: null,
  “errors”: [
    {
      “message”: “A description of what went wrong”
    }
  ]
}


• errors
  Contains one or more error objects

• message
  Provides a description of the issue encountered during execution

Partial Response

In some cases, a request may return both data and errors. This indicates that part of the query was executed successfully, while other parts encountered issues.

{
  “data”: {
    “packages”: […]
  },
  “errors”: [
    {
      “message”: “Could not load connectors: access denied”
    }
  ]
}


Troubleshooting Common Issues

What You See	What It Means	How to Fix It
“Unauthorized” or “401” error	The API Token is missing, invalid, or has been regenerated	Retrieve a valid API Token from the API Access section in EA GraphLink and ensure it is correctly set as a Bearer Token in the Authorization tab
“Not Found” or “404” error	The Endpoint URL contains an incorrect schema or model name	Open the API Access Model and copy the correct Endpoint URL
“Gone” or “410” error	The selected schema or model is no longer available or has been disabled	Contact the administrator to enable the required schema or model
“Unsupported Media Type” or “415” error	The request body format is not set to JSON	Make sure you selected raw and JSON in the Body tab
Empty response or null data	The query may contain incorrect field names or filters, or no matching data is available	Validate the query structure and field names. It is recommended to test using the sample queries provided
